TCL TAC-09CHSD/XA73I

0 Review(s)

High Wall Inverter 9000BTU

Type High Wall
Cooling Capacity (Btu/ hr) 9000 Btu
Energy Class Cooling A++
Energy Class Heating A+++
Ionic Function No

Sale Price: €359.00 €445.00

Accompanying services you might be interested in

Installation A/C 9000 - 12000 BTU

€115.00

Turbo Cooling&Heating

Experience fast cooling with coils down to 18°C within 30s and have warm atmosphere with coils up to 40°C within 60s. The inverter compressor runs at extremely high frequency to output maximum capacity and the cooling/warm airflow will blow out as the most wanted when you get back home from scorching/freezing outside.

Low Noise

The lowest noise mode.

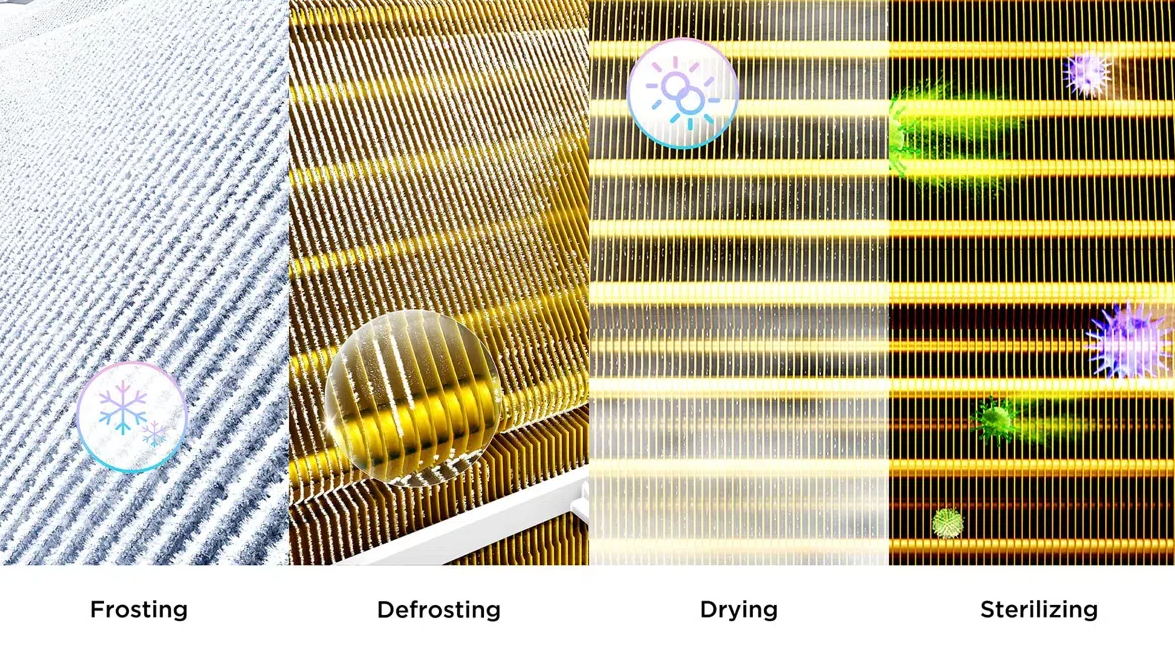

4-Step Auto Clean

From frosting, defrosting, drying, to sterilizing. Deep Clean utilizes water molecules in the air to clean away dust, dirt, and other impurities. The auto program is efficient, easy, and a superior way to enjoy cleaner air. Just hit the button.

Extreme Cooling

Stay cool no matter the outside temperature. The air-cooled E-box ensures continuous cooling even at 60°C ambient and 100% cooling capacity output at 50°C ambient.

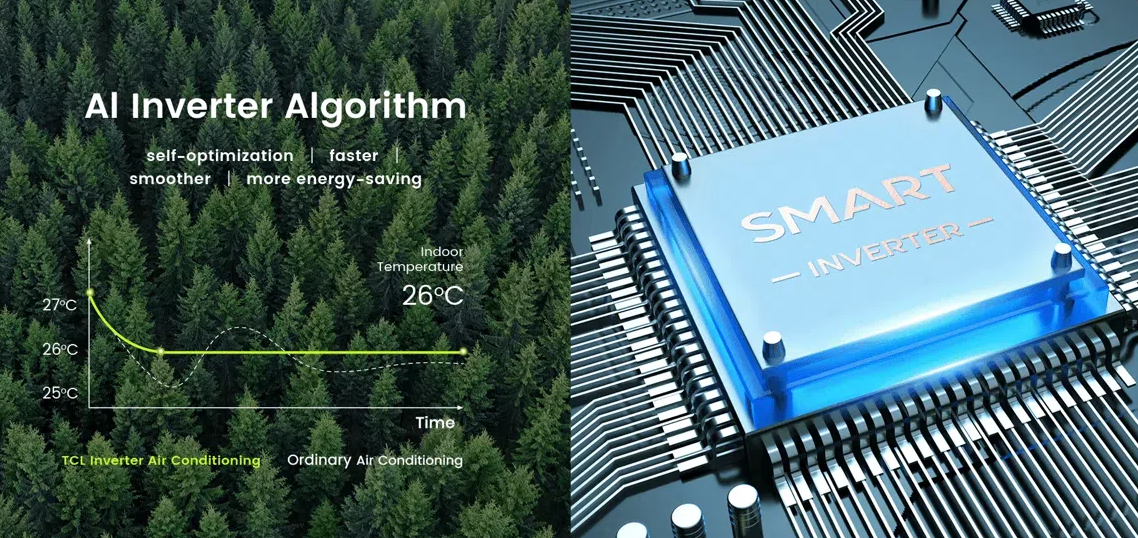

AI Inverter

Save money and enjoy energy efficiency with Smart Inverter. With up to 60% energy saving, Smart Inverter helps reaching the setting temperature more quickly, and keep temperature stable within ±1℃.

Extended Specifications

General

Rated Heating Performance - COP (W/W): 3.06
Rated Cooling Performance - Capacity (W): 2635(600~2800)
Rated Cooling Performance - EER (W/W): 2.92
Rated Cooling Performance - Max current (A): 9.0
Rated Heating Performance - Rated current (A): 3.9(1.4~9.0)
Refrigerant: R410A / 0.48kg
Indoor noise level (dB(A)): 41
Indoor air flow (Hi) (m3/h): 450
Power supply (Ph-V-Hz): 1Ph-220-240V~50Hz
Indoor unit - Net/Gross weight (Kg): 6.5 / 8.5
Outdoor unit - Packing(W*D*H) (mm): 765×310×481
Refrigerant piping - Max. refrigerant pipe length (m): 15
Outdoor unit - Net/Gross weight (Kg): 20 / 24
Ambient temperature (℃): -15~50
Pressure - High(DP) (MPa): 4.5
Connecting Wiring (Size x Core number): 1.0mm² X 4
Refrigerant piping - Liquid side/ Gas side (mm(inch)): φ6(7/16")/φ9.52(5/8")
Outdoor unit - Dimension(W*D*H) (mm): 660×230x456
Rated Heating Performance - Max power Input (W): 1200
Voltage Range (V): 155~265
Compressor (Model): 35W2ALLB9F#MC
Rated Cooling Performance - Max power Input (W): 1300
Qty 40'HQ: 355
Moisture removal (Liters/h): 1.0
Compressor (Type): Rotary
Indoor unit - Dimension(W*D*H) (mm): 698×190×255
Rated Cooling Performance - Rated current (A): 4.1(1.4~9.0)
Pressure - Low(SP) (MPa): 1.9
Control type: Remote
Rated Heating Performance - Capacity (W): 2635(600~2900)
Outdoor noise level (dB(A)): 52
Rated Cooling Performance - Capacity (Btu/h): 9000(2050~9550)
Type: Cooling and Heating, Inverter
Rated Heating Performance - Max current (A): 9.0
Indoor unit - Packing(W*D*H) (mm): 764×325×257
Refrigerant piping - Max. difference in level (m): 10
Suitable area (m²): 9~16
Rated Heating Performance - Capacity (Btu/h): 9000(2050~9900)
Rated Heating Performance - Rated power Input (W): 860(300~1200)
Compressor (Brand): Rechi
Rated Cooling Performance - Rated power Input (W): 900(300~1300)
